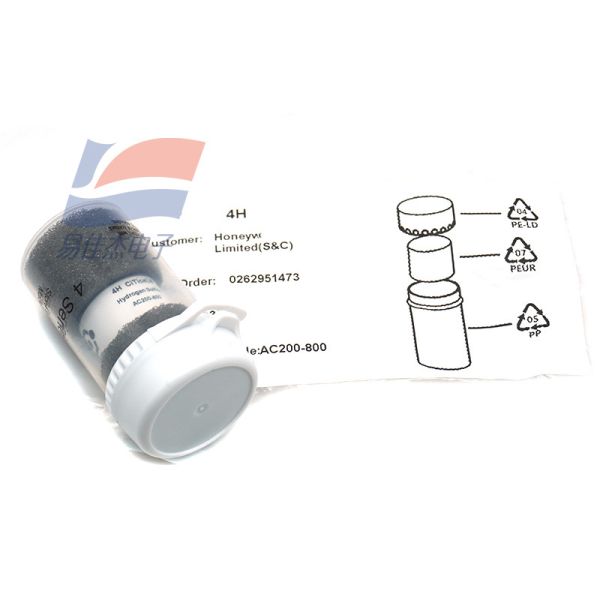

4H Hydrogen Sulfide H2S Gas Sensor Part Number AC200-800 Improved Performance Variability with Resolution 0.1 ppm

Model Number : 4H

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5workingdays

Operating Principle : 3-electrode electrochemical

Measurement Range : 0-100 ppm

Maximum Overload : 500 ppm

Resolution : 0.1 ppm

Sensitivity* : 1.20 ± 0.25 μA/ppm

Response Time (T90)* : < 30 seconds

Baseline Offset (clean air)* : -0.02 to +0.2 ppm equivalent

Contact Now

4H Hydrogen Sulfide (H2S) Gas Sensor Part Number: AC200-800 Improved performance variability

The cross sensitivity data shown below does not form part of the
product specification and is supplied for guidance only. Values quoted are based on
tests conducted on a small number of sensors and any batch may show significant
variation. For the most accurate measurements, an instrument should be calibrated
using the gas under investigation.

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended
circuitry. Performance characteristics outline the performance of sensors supplied within the
first 3 months. Output signal can drift below the lower limit over time.

Storage Life	6 months in sealed container
Expected Operating Life	2 years in air
Recommended Storage Temp	0 to 20°C
Long Term Output Drift	< 2% signal drift / month
Operating Humidity Range	15% to 90% RH non-condensing

4H Hydrogen Sulfide H2S Gas Sensor Part Number AC200-800 Improved Performance Variability with Resolution 0.1 ppm
